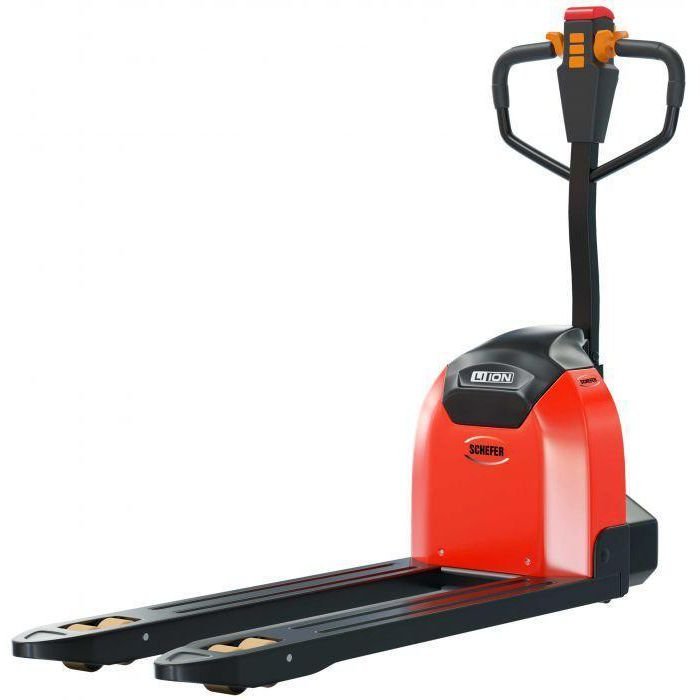

Schefer EHW20 Premium – Electric pallet truck with 2000 kg load capacity for maximum efficiency
The Schefer EHW20 Premium is a powerful electric pallet truck specially designed for intensive warehouse and logistics applications. With a load capacity of 2000 kg and a robust construction, it ensures fast and effortless transport of pallets and heavy loads. Thanks to modern lithium-ion technology, it offers a long service life, fast charging times, and minimal maintenance requirements – ideal for daily use in warehouses, logistics, and industry.
Top features of the Schefer EHW20 Premium:
2000 kg load capacity – ideal for transporting heavy loads
Electric lift & drive – effortless lifting & driving with minimal effort

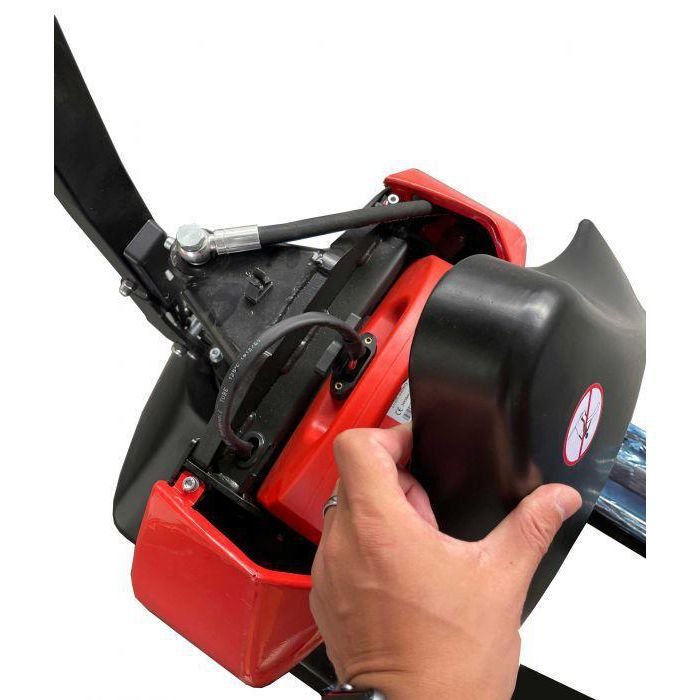

Lithium-ion battery – maintenance-free, long-lasting & fast-charging
Robust construction – high stability & long service life

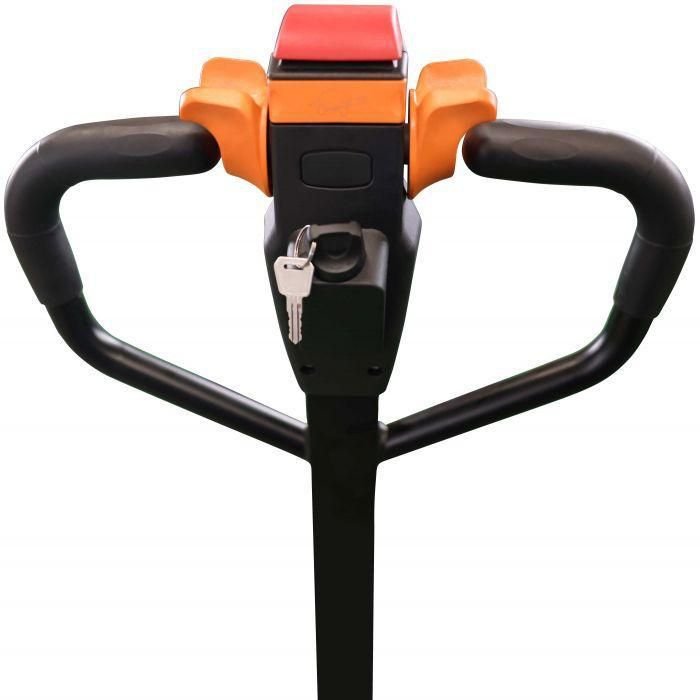

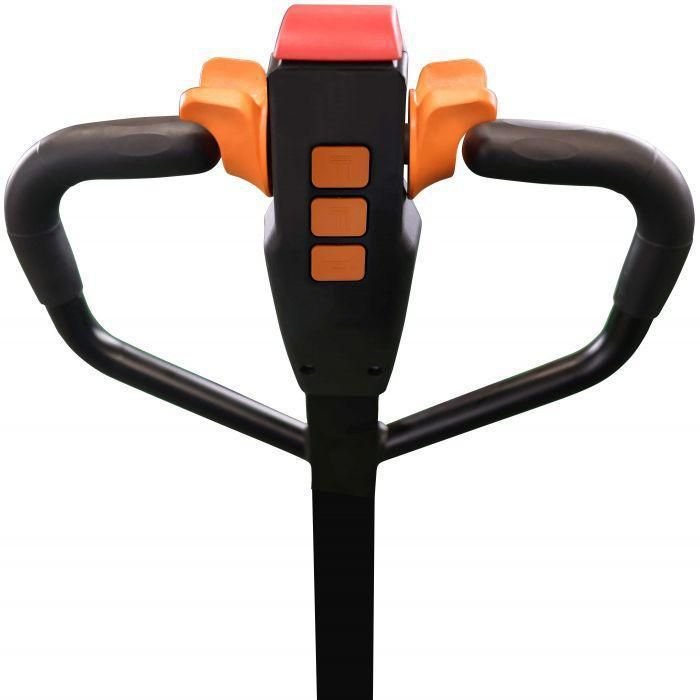

Ergonomic controls – comfortable and safe handling
Efficient logistics solution for your company
With the Schefer EHW20 Premium electric pallet truck, you can optimize your material flow and reduce manual effort when transporting goods. The powerful lithium-ion battery ensures uninterrupted operation, while the ergonomic controls enable easy handling.
Buy the Schefer EHW20 Premium now at staplertechnik24.de! Your professional for modern warehouse technology!
Technical data sheet
Characteristics |
Value |
Load capacity (kg) |
2000 |
Load center of gravity (mm) B |
600 |
Turning angle of drawbar (°) |
180 |
Wheelbase front/rear (mm) L |
1190 |
Weight (with battery) (kg) |
150 |
Fork width (mm) J |
150 |
Fork length (mm) H |
1150 |
Drive wheel (mm) X |
210 × 70 P |
Fork rollers (mm) Y |
80 × 60 P |
Support wheel (mm) Z |
50 × 30 N |
Number of wheels
|
1X 4Y 2Z |
Stroke (mm) E |
115 |
Drawbar height max. (mm) A |
1220 |
Fork height min. (mm) F |
85 |
Total length (mm) G |
1600 |
Total width (mm) N |
550 |
Fork carrying width (mm) Q |
550 |
Ground clearance (mm) C |
35 |
Aisle width with Euro pallet (mm) |
1800 |
Turning radius (mm) |
1345 |
Speed loaded (km/h) |
4.2 |
Gradeability loaded (%) |
5 |
brake
|
electromagnetic |
Drive motor (kW) |
0.75 |
Lifting motor (kW) |
0.8 |
Battery (V/Ah) |
48/20 lithium-ion |
Battery weight +/-5% (kg) |
8 |
Fork thickness (mm) D |
50 |

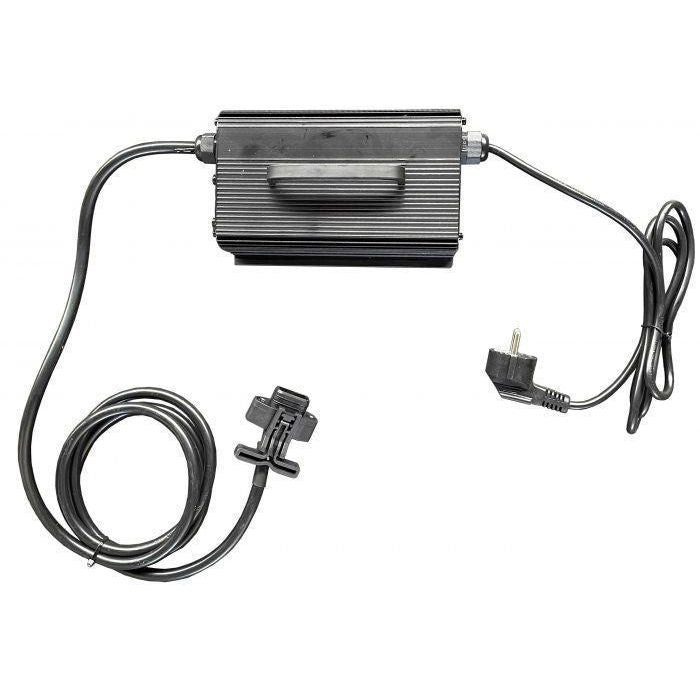

charger |
external 48V/10A |
