EP-Equipment JX1 vertical order picker

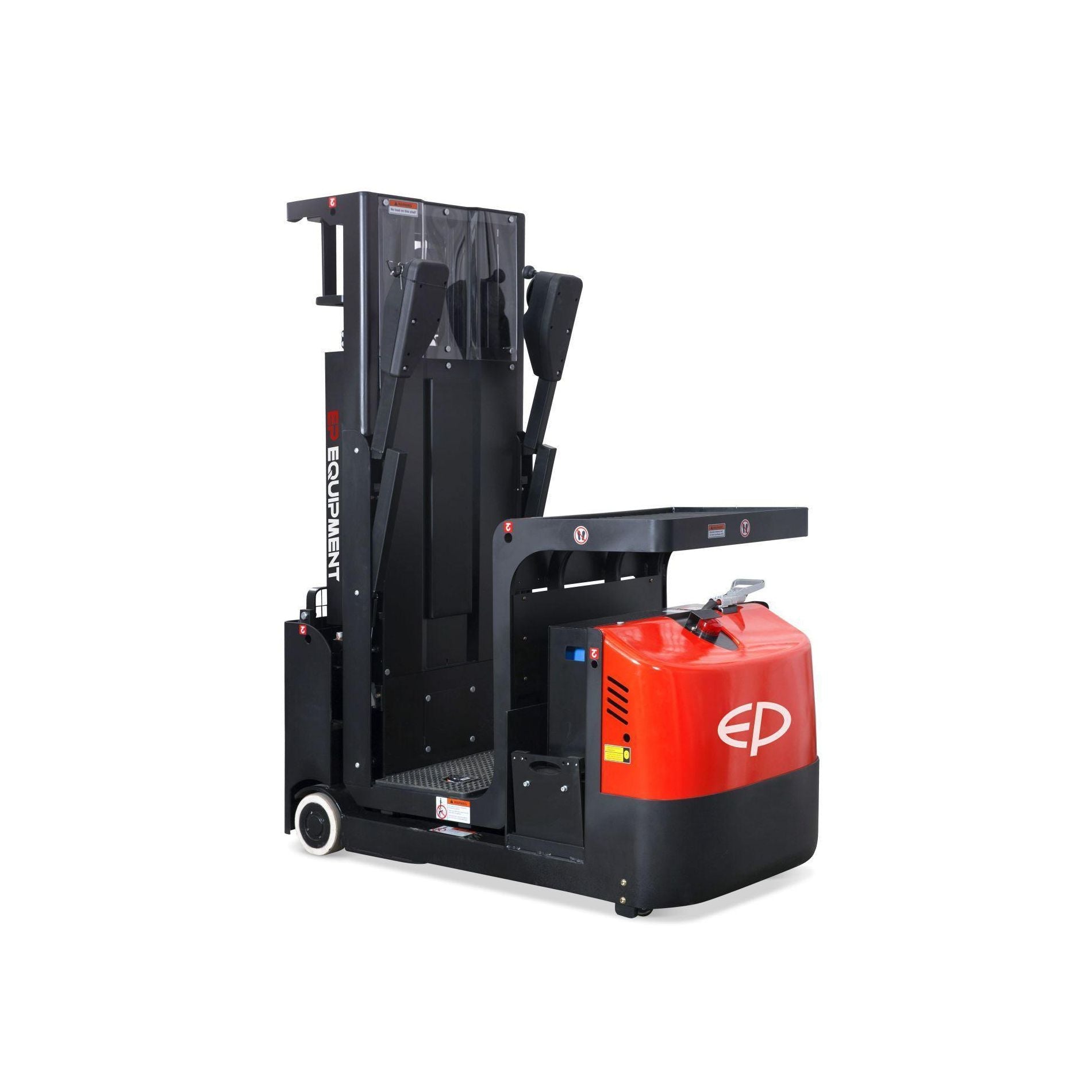

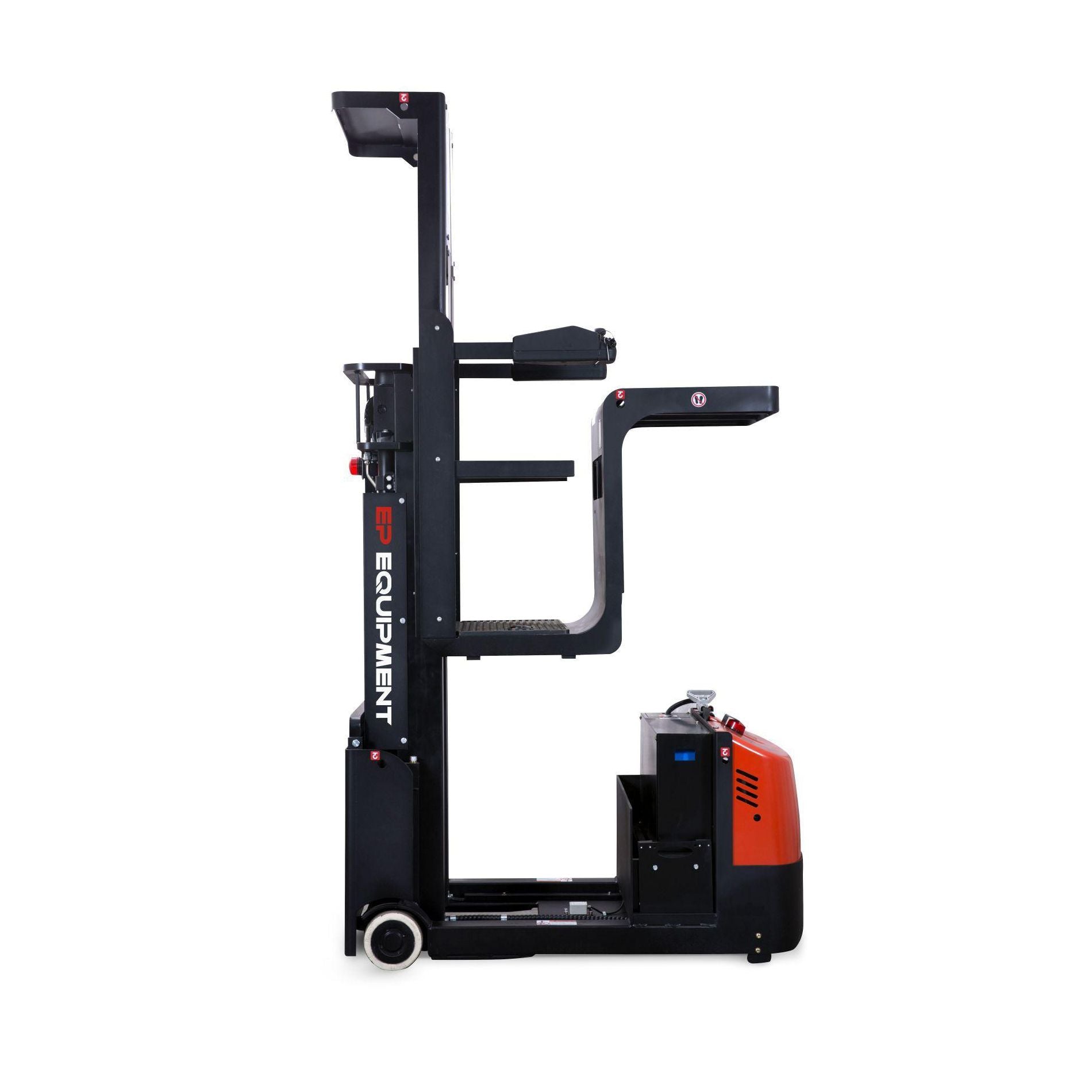

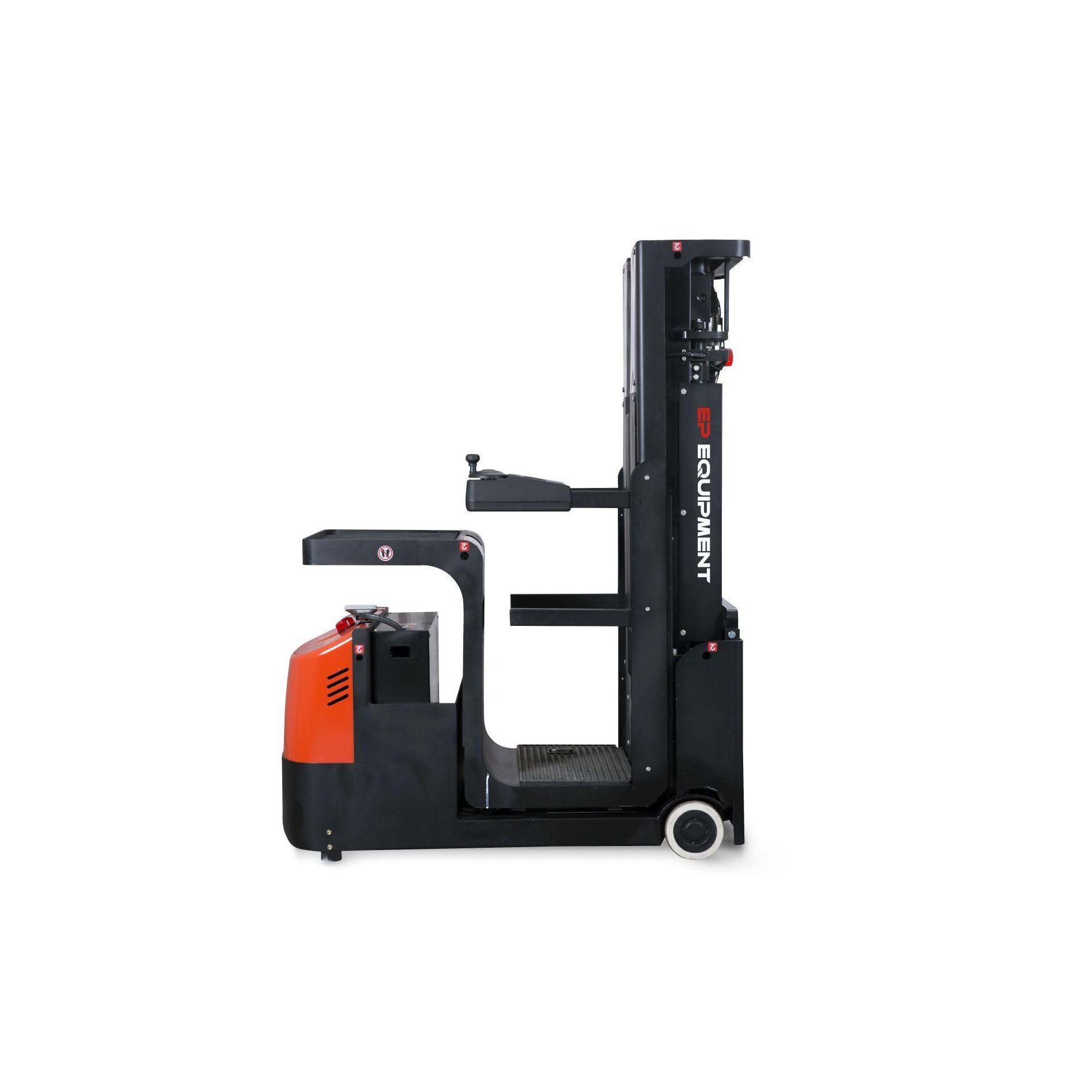

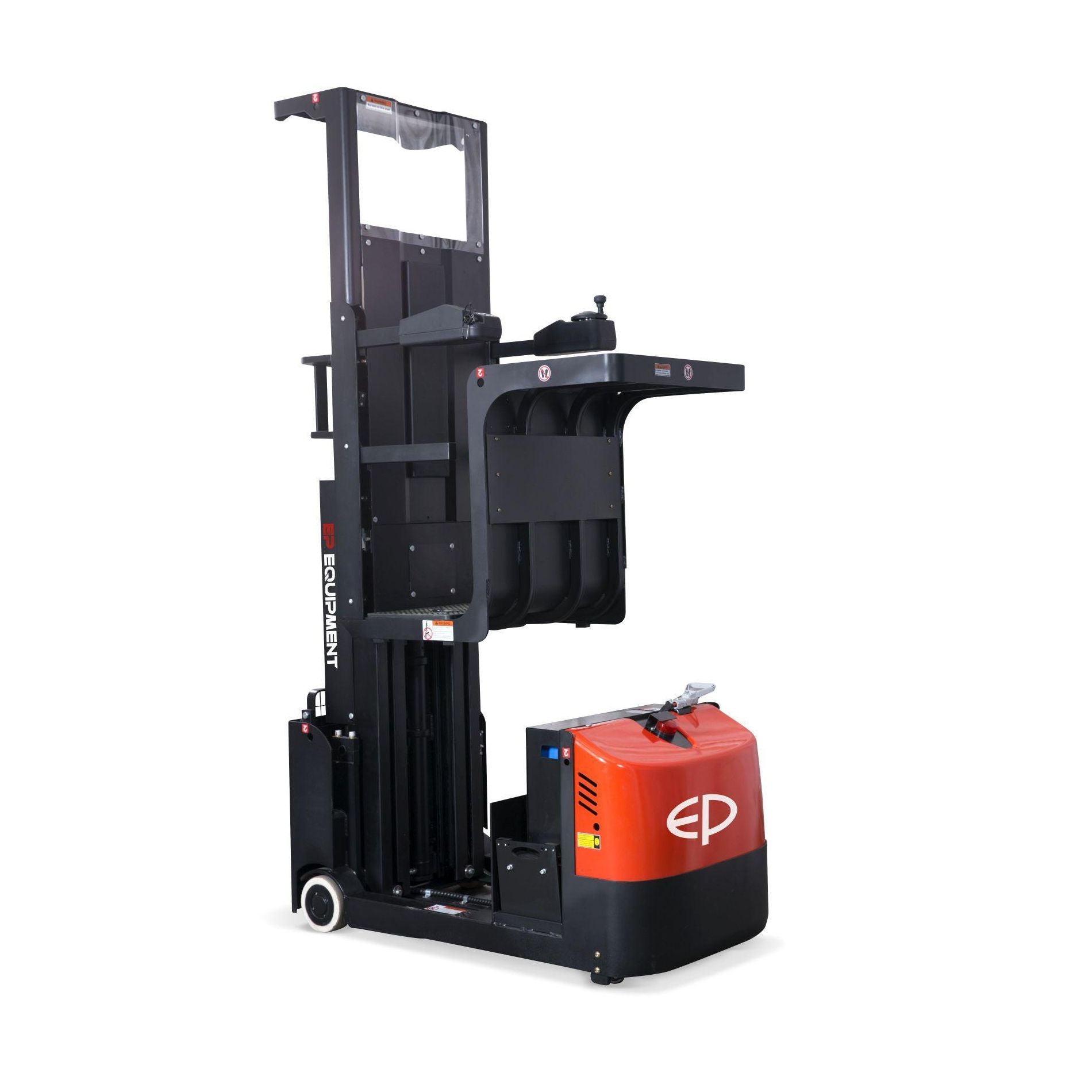

EP-Equipment JX1 Vertical Order Picker – The Future of Efficient Pallet Handling

Experience a new dimension in warehouse productivity with the EP-Equipment JX1 vertical order picker. Engineered for maximum efficiency and safety, this unit combines cutting-edge technologies such as the optional lithium-ion battery and an impressive lift height of 4800 mm. Ideal for working in high racking systems and designed to minimize the risk of injury, the JX1 sets new standards in warehouse operations.

Versatile applications:

From warehouses to logistics centers to distribution centers – wherever precise and fast picking is required, the JX1 is at home. Thanks to its compact size and maneuverability, it masters even narrow warehouse aisles with ease.

• Lifting height: Up to 4800 mm
• Platform load capacity: 500 kg
• Platform height: 4880 mm
• Turning radius: Only 1385 mm
• Battery options:
  • Standard: 224Ah maintenance-free AGM battery
  • Optional: 24 V 205Ah lithium-ion battery for longer operating times and shorter charging times
• Drive: High-efficiency AC motor
• Control: LCD dashboard for intuitive operation
• Driving speed: Up to 6 km/h (loaded)
• Dead weight: 1680 kg

Groundbreaking features:

• Impressive lifting height: Master high shelving systems effortlessly and increase picking efficiency.
• Excellent maneuverability: The compact turning radius of only 1385 mm guarantees maximum maneuverability in tight spaces.
• Powerful AC motor: Benefit from low maintenance and high reliability with our powerful AC motor.
• Lithium-ion battery option: Faster charging and longer operating cycles significantly increase productivity.
• Synchronous lifting and driving: Saves time and enables consistent workflows.
• Spacious and safe work platform: Provides sufficient space for operators and goods with optimal safety.
• Plexiglass protection: Guarantees a clear view of the forks and work area, increasing safety and efficiency.

Ready for the future – flexible and powerful

With its advanced lithium-ion technology and compact design, the JX1 vertical order picker from EP-Equipment offers the perfect solution for demanding warehouse tasks. Rely on the modern combination of AC drive and future-proof battery technology to optimize your warehouse processes.

Experience the innovation now at Staplertechnik24.de – your partner for flexible order picking solutions.
